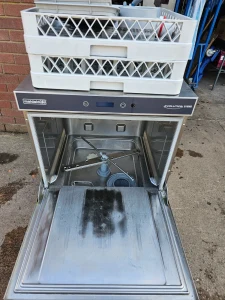

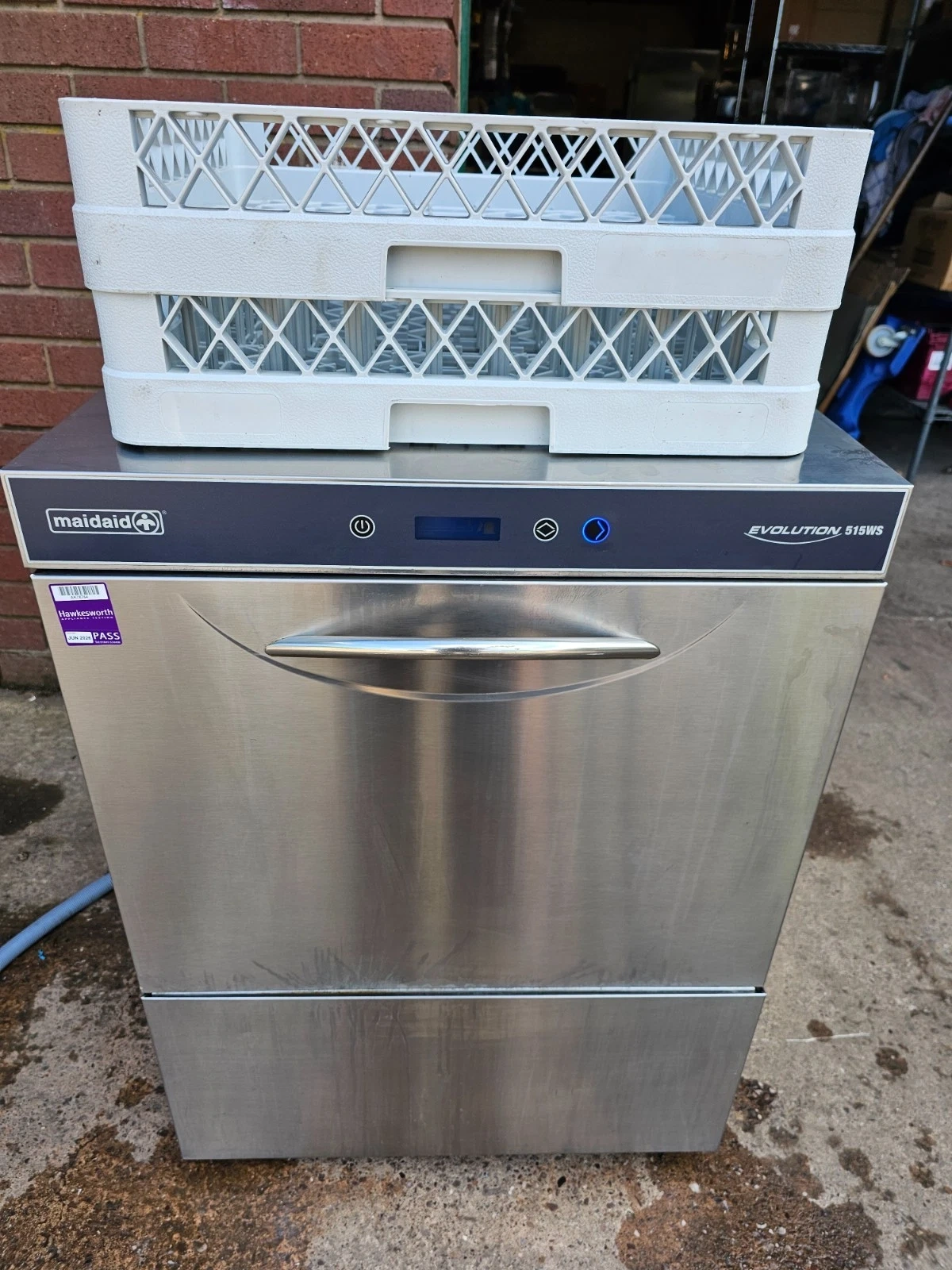

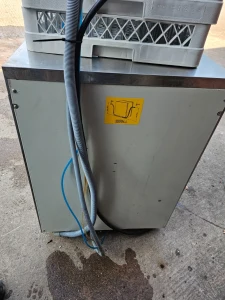

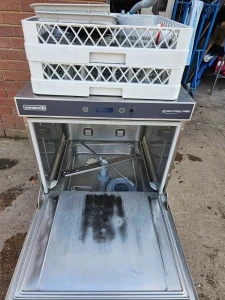

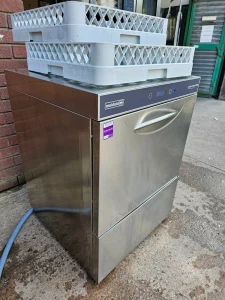

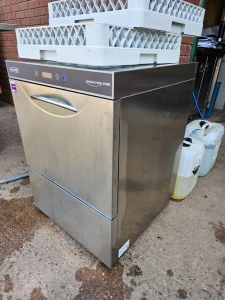

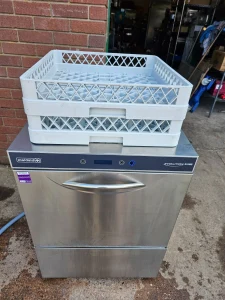

Maidaid Evolution EVO515WS Undercounter Dishwasher / Glasswasher with Water Softener

About this equipment

The Maidaid Evolution EVO515WS brings dishwashing and dedicated glasswashing into an undercounter format, making it a practical option for restaurants, cafés, bars and staff catering kitchens. Its 500 × 500 mm basket format accommodates routine warewashing, while the GLASS programme automatically changes operating parameters for glassware. This flexibility is useful where the wash area needs to handle different loads throughout the day. Programme choice extends beyond everyday washing. The long cycle caters for intensive cleaning or glass renovation, while ACT runs two complete cycles for heavily soiled items. A GREEN economy programme provides a lower-temperature, reduced-water option. The LCD interface gives staff machine status information, with chemical priming and dosing accessible from the fascia rather than requiring separate manual adjustment at the pumps. An internal continuous water softener, Type AA break tank, drain pump and rinse booster pump are fitted. Double-skinned construction helps limit noise and heat loss, a useful consideration in smaller wash areas close to kitchen staff. Surface scrap trays and an automatic self-cleaning cycle also support the daily cleaning routine. This example is in great used condition following light use in a canteen that operated for 12 months. It is supplied with one open rack and one pegged plate rack, providing options for loading different types of ware. Its three-phase electrical supply and documented water requirements should be considered when planning the installation. When connected to a cold water supply, it cannot run repeated short cycles: cycle times extend automatically to allow the correct operating temperatures to recover.

Condition

Used

Specifications

Depth

605 mm

Power

6.5 kW

Racks

1 open rack and 1 pegged plate rack

Width

600 mm

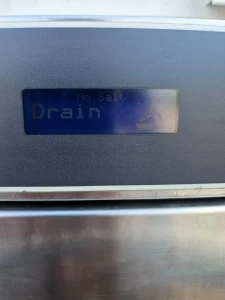

Display

Full LCD interface with machine status updates

Break tank

Type AA

Drain pump

Fitted

Basket size

500 × 500 mm

Cycle count

8

Feet height

10–20 mm

Scrap trays

Surface scrap trays fitted

Door opening

385 mm

Manufactured

26 August 2020

Act programme

Runs two complete cycles for intensive washing

Self-cleaning

Automatic self-cleaning cycle

Current rating

13 A

Detergent pump

Peristaltic, non-timed

Equipment code

916581

Long programme

Intensive washing or glass renovation

Rinse aid pump

Peristaltic, non-timed

Water softener

Internal continuous water softener

Wash temperature

60°C, adjustable

Body construction

Double-skinned

Door construction

Double-skinned

Electrical supply

415 V, three-phase with neutral (3N~), 50 Hz

Programme options

P1, P2, P3 and GLASS

Rinse temperature

78°C, adjustable; high-temperature rinse

Water consumption

1.9 L

Conformity marking

CE

Double-skin design

Helps reduce noise and heat loss

Ingress protection

IPX4

Rinse booster pump

Internal pump fitted

Wash tank capacity

15 L

Cold-water operation

Repeated short cycles are not possible; cycle times extend automatically for temperature recovery

Model / product code

EVO515WS (Evolution 515WS)

Maximum usable height

345 mm

Country of manufacture

Italy

Dynamic supply pressure

2–4 bar

Service information access

Information retrieval for installation and service technicians

Water supply pressure, plate range

1–4 bar (100–400 kPa)
